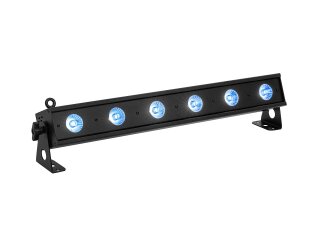

LED light effect bar (60 cm) with RGB+WW color mixing
- 6 powerful LEDs 7 W high-power 4in1 QCL RGB/WW (homogenous color mix)
- Variable color temperature 2700 K - 8000 K
- 3 integrated show programs
- Direct color selection for 20 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Strobe effect
- With a beam angle of 20°
- 4 digit 7-segment LED display
- With mounting bracket
- Flicker-free
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Preprogrammed in Light Captain; Colorchief
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; party room; mobile djs / entertainer; restaurants, bars and hotels
- Silent operation
- Application possibility: Suspended
Package contents
- 1 x bar, 1 x user manual, 1 x power cord, 2 x mounting bracket, 2 x washer, 2 x knurled screw
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
14 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: |
1 x IEC connector (F) mounting version |
| Fuse: |
T 1 A fuse replaceable |
| Lamp type: |
LED lamp |
| LED type: |
6 x 7 W high-power 4in1 QCL RGB/WW (homogenous color mix) |
| Flash rate: |
0,5 - 24 Hz |
| DMX channels: |
2; 4; 5; 6; 9 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: |
Light Captain; Colorchief |
| Projection: |
Flicker-free |
| Beam angle: |
20° |
| Beam angle (1/2 peak): |
20° |
| Beam angle (1/10 peak): |
33° |
| Color temperature: |
2700K - 8000K adjustable |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket |
| Display type: |
4 digit 7-segment LED display |
| Dimensions: |
Length: 56,6 cm
Depth: 8,85 cm
Height: 10,9 cm |
| Weight: |
1,65 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Power cord |
| Cable length: |
Approx. 1,1 m |
| Mounting bracket |
| Diameter mounting holes: |
1 x Ø20mm; 1 x Ø11mm; 1 x Ø8mm; 2 x Ø7mm |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
2,40 kg
|
| Item weight: |
1,85 kg
|
| Dimensions
( Length × Width × Height ):
|
135,00 × 535,00 × 105,00 cm |
