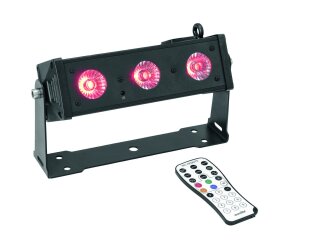

Compact (26 cm) bar with 3 x 12 W 6in1 LED and RGBWA+UV color mixing
- 3 powerful LEDs 12 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect; UV effect
- Integrated show programs
- Direct color selection for 19 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; IR remote control; sound to light via microphone; master/slave function
- Flicker-free
- With a beam angle of 20°
- With mounting bracket
- 4 digit 7-segment LED display
- Preprogrammed in EASY SHOW 3; EASY SHOW 2; Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; Colorchief
- For application areas such as: Clubs/dancing school; party room; restaurants, bars and hotels; small rental
- Silent operation
- Application possibility: Suspended; wall mounting
Package contents
- 1 x light effect, 1 x power cord, 1 x remote control, 1 x battery, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
12 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Fuse: |
5 x 20 mm, T 0,5 A fuse replaceable |
| Lamp type: |
LED lamp |
| LED type: |
3 x 12 W high-power 6in1 HCL RGBWA/UV (homogenous color mix) |
| Flash rate: |
0 - 20 Hz |
| DMX channels: |
2; 3; 4; 6; 10 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
Stand-alone; DMX; IR remote control; sound to light via microphone; master/slave function |
| Preprogrammed in: |
EASY SHOW 3; EASY SHOW 2; Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief |
| Projection: |
Flicker-free |
| Beam angle: |
20° |
| Beam angle (1/2 peak): |
20° |
| Beam angle (1/10 peak): |
40° |
| Wavelength: |
Ultra violet (UV) 400 nm |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket |
| Display type: |
4 digit 7-segment LED display |
| Material: |
Aluminum casting; metal; plastic hard |
| Dimensions: |
Length: 26,5 cm
Depth: 8,7 cm
Height: 12,9 cm |
| Weight: |
1,13 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Photobiological safety: |
Risk Group 0 |
| Mounting bracket |
| Diameter mounting holes: |
1 x Ø11mm; 4 x Ø8mm; 2 x Ø5mm |
| Material: |
Metal, 2 mm |
| Power cord |
| Cable construction: |
3 x 0,75 mm² H05VV-F |
| Cable length: |
Approx. 1,2 m |
| Remote control |
| Battery: |
1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
1,70 kg
|
| Item weight: |
1,28 kg
|
| Dimensions
( Length × Width × Height ):
|
17,00 × 275,00 × 12,00 cm |
