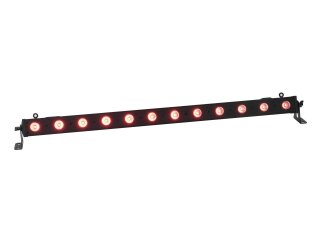

LED bar (100cm) with 12 x 4 watt 4in1 QCL RGB/UV LED
- 12 powerful LEDs 4 W high-power 4in1 QCL RGB/UV (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect; UV effect
- Integrated show programs
- Direct color selection for 20 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 20°
- With mounting bracket
- 4 digit 7-segment LED display
- Silent operation
- Preprogrammed in LED PC-Control 512; EASY SHOW 2; Light Captain; EASY SHOW 3; Colorchief
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; party room; restaurants, bars and hotels; small rental
- Application possibility: Suspended; wall mounting
screw
Package contents
- 1 x bar, 1 x power cord, 2 x mounting bracket, 2 x screw, 2 x washer, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
25 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| Power output: |
1 x IEC connector (F) mounting version |
| Lamp type: |
LED lamp |
| LED type: |
12 x 4 W high-power 4in1 QCL RGB/UV (homogenous color mix) |
| Flash rate: |
0 - 20 Hz |
| DMX channels: |
2; 4; 5; 6; 9 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: |
LED PC-Control 512; EASY SHOW 2; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief |
| Projection: |
Flicker-free |
| Beam angle: |
20° |
| Beam angle (1/2 peak): |
20° |
| Beam angle (1/10 peak): |
33° |
| Wavelength: |
Ultra violet (UV) 399 nm |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket |
| Display type: |
4 digit 7-segment LED display |
| Material: |
Aluminum; metal |
| Dimensions: |
Length: 100 cm
Depth: 6,5 cm
Height: 10,3 cm |
| Weight: |
2,85 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Photobiological safety: |
Risk Group 0 |
| Power cord |
| Cable construction: |
3 x 0,75 mm² H05VV-F |
| Cable length: |
1,2 m |
| Mounting bracket |
| Diameter mounting holes: |
1 x Ø20mm; 1 x Ø11mm; 2 x Ø7mm |
| Material: |
Metal, 2 mm |
| Screw |
| Thread: |
M8 thread x 16 mm |
| Washer |
| Material: |
Rubber |
| Dimensions: |
Height: 0,3 cm
Diameter: Ø 2 cm |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
4,30 kg
|
| Item weight: |
3,30 kg
|
| Dimensions
( Length × Width × Height ):
|
13,00 × 106,00 × 125,00 cm |
