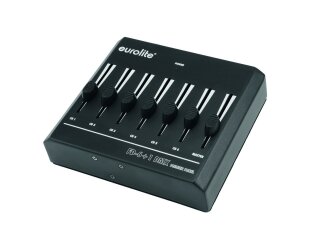

Basic DMX controller for 6 channels with master fader
- Basic DMX controller for convenient operation of light effect units with DMX512 interface (e.g. spotlights and dimmers)
- 6 channel faders for adjusting the DMX values
- 1 master fader
- Compact design
- Powered by a battery/battery pack
- Can transmit up to 6 DMX channels
- Desktop console housing
- For application areas such as: Trade fair and shop fitting; restaurants, bars and hotels; video and photography
- Silent operation
Package contents
- 1 x controller, 1 x user manual, 1 x external mains adapter
| Power supply: |
100-240 V AC, 50/60 Hz
9V DC |
| Power consumption: |
1,8 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class III |
| Power connection: |
Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Battery/battery pack possible |
| Battery: |
1 x 9.0 V E block (not included) |
| DMX channels: |
Output 6 |
| DMX output: |
3-pin XLR (F) mounting version |
| Housing color: |
Black |
| Housing design: |
Desktop console housing |
| Dimensions: |
Width: 17 cm
Depth: 15,5 cm
Height: 6 cm |
| Weight: |
0,96 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Item information |
Value |
| Shipping weight: |
1,40 kg
|
| Item weight: |
1,10 kg
|
| Dimensions
( Length × Width × Height ):
|
10,00 × 29,00 × 19,00 cm |
