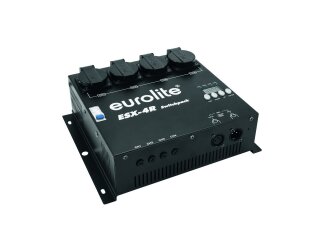

4-channel DMX switch pack, up to 5 A load per channel, control per Triac
- 4 controllable channels
- 5 A load per channel
- LED display of all channels
- With Control Board for programming scenes and chasers
- Rugged metal housing
- Control via stand-alone; DMX; RDM
- 4 digit 7-segment LED display
- For application areas such as: Clubs/dancing school; party room; theater; restaurants, bars and hotels
- Silent operation
Package contents
- 1 x device, 1 x user manual
| Power supply: |
230 V AC, 50 Hz |
| Output power: |
Max. 3680 W
Max. 1150 W per channal |
| Output current: |
Max. 16 A |
| Power connection: |
Fixed power supply cord with safety plug |
| Power output: |
4 x safety contact (F), mounting version |
| DMX channels: |
4 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Control: |
Stand-alone; DMX; RDM |
| Control channels: |
4 |
| Display type: |
4 digit 7-segment LED display |
| Color: |
Black |
| Dimensions: |
Width: 27 cm
Depth: 26 cm
Height: 9,5 cm |
| Weight: |
2,83 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Item information |
Value |
| Shipping weight: |
4,40 kg
|
| Item weight: |
3,40 kg
|
| Dimensions
( Length × Width × Height ):
|
19,00 × 33,00 × 33,00 cm |
