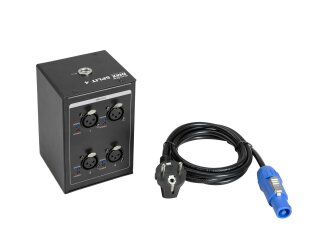

This compact 4-fold splitter is designed for reliable distribution of DMX512 signals in rigs. The unit features 3-pin XLR connectors with status indicators, and a M10 threaded insert for truss attachment. Delivery includes a power cord.
4-fold DMX splitter for truss mounting
- Mini splitter with 3-pin XLR terminals
- Rugged metal housing
Package contents
- 1 x device, 1 x power cord, 1 x user manual, 4 x foot
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
1,5 W |
| Output current: |
Max. 10 A |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: |
P-Con (gray), mounting version |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
4 x 3-pin XLR (F) mounting version separate (galvanic)
1 x 3-pin XLR (F) mounting version Bypass |
| Status LED: |
Power, DMX |
| Dimensions: |
Length: 9 cm
Width: 9,5 cm
Height: 14 cm |
| Weight: |
0,99 kg |
| Item information |
Value |
| Shipping weight: |
1,50 kg
|
| Item weight: |
1,17 kg
|
| Dimensions
( Length × Width × Height ):
|
13,00 × 26,00 × 19,00 cm |
