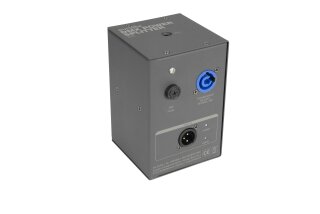

2-fold power and DMX splitter for truss mounting
- Reliable power and DMX distributor
- 1 P-Con input to 2 outputs, max. 10 A
- 1 DMX input to 2 outputs
- Input and outputs galvanically isolated
- Rugged metal housing
- Each DMX output with independent driver and status indicator
Package contents
- 1 x device, 1 x power cord, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
2 W |
| Output current: |
Max. 2 x 5 A per channal |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: |
2 x P-Con (gray), mounting version |
| DMX input: |
3-pin XLR (M) |
| DMX output: |
2 x 3-pin XLR (F) separate (galvanic) with independent driver and status indicator |
| Status LED: |
Power, DMX |
| Dimensions: |
Width: 9 cm
Depth: 10 cm
Height: 13,6 cm |
| Weight: |
1,00 kg |
| Item information |
Value |
| Shipping weight: |
1,50 kg
|
| Item weight: |
1,17 kg
|
| Dimensions
( Length × Width × Height ):
|
135,00 × 20,00 × 175,00 cm |
