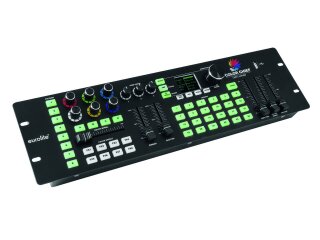

DMX lighting desk with innovative control concept for LED spotlights
- Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
- For 8 devices or device groups, each with up to 4 segments
- Quick and easy programming
- Additional fixtures can be configured manually
- 8 color effects directly selectable
- 3 additional channels available per fixture (e.g. for rotations)
- Color wheel selection and simulation
- 24 memory spaces for scenes and chases
- Several chases and scenes can be run simultaneously
- USB port for storing program data
- Sound control via audio signal or TAP button
- Master dimming, fade time and run time easily adjustable
- Programmable 24 scenes/chases distributed over 1 page/s
- Can transmit up to 240 DMX channels
- Control via DMX; sound to light via RCA (F) mounting version; sound to light via microphone
- (19") 48.3 cm rack installation 3 U
- Desktop console housing
- For application areas such as: Clubs/dancing school; party room; Trade fair and shop fitting; mobile djs / entertainer; restaurants, bars and hotels
- Silent operation
- Firmware can be updated
Package contents
- 1 x controller, 1 x user manual, 1 x external mains adapter
Power supply: |
100-240 V AC, 50/60 Hz 9V DC 800 mA |
Power consumption: |
7,2 W |
IP classification: |
IP20 |
Protection class: |
Protection class III |
Power connection: |
Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
Programs: |
Programmable 24 scenes/chases distributed over 1 page/s |
DMX channels: |
Output 240 |
DMX output: |
1 x 3-pin XLR (F) mounting version |
Control: |
DMX; sound to light via RCA (F) mounting version; sound to light via microphone |
Housing color: |
Black |
Available storage media: |
USB devices (FAT 32) |
USB port: |
Type A |
Color: |
Black |
PC connect: |
, firmware can be updated |
Housing design: |
(19") 48.3 cm rack installation 3 U Desktop console housing |
Dimensions: |
Width: 48,3 cm Depth: 13,35 cm Height: 8,5 cm |
Weight: |
2,25 kg |
Noise classification: |
Class 0 (no noise at all) |
Item information |
Value |
Shipping weight: |
3,30 kg
|
Item weight: |
2,55 kg
|
Dimensions
( Length × Width × Height ):
|
12,00 × 57,00 × 17,00 cm |
