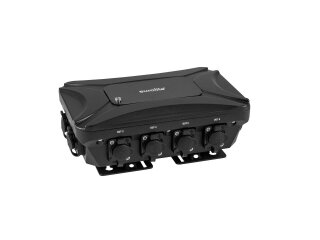

Weather-proof splitter with 8 galvanically isolated outputs, 3-pin IP XLR sockets
- DMX splitter for splitting one DMX input signal to 8 DMX outputs
- Input and outputs galvanically isolated
- Suitable for outdoor use IP65
- With Holder for wall mounting
- Control via DMX
- With pressure compensation membrane
- Application possibility: Wall mounting; suspended; standing
- For application areas such as: Installation; mobile use; stage; architecture
- Silent operation
Package contents
- 1 x device, 1 x power cord, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
4 W |
| IP classification: |
IP65 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Fuse: |
T 1 A fuse fix on board |
| DMX input: |
1 x 3-pin XLR (M) mounting version IP |
| DMX output: |
1 x 3-pin XLR (F) mounting version IP
8 x 3-pin XLR (F) mounting version IP separate (galvanic) |
| Control: |
DMX |
| Attachment system: |
M10 thread
Holder for wall mounting |
| Status LED: |
Power, DMX |
| Material: |
Aluminum casting |
| Color: |
Black |
| Dimensions: |
Length: 22,5 cm
Width: 15,0 cm
Height: 8,5 cm |
| Weight: |
2,13 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Item information |
Value |
| Shipping weight: |
3,20 kg
|
| Item weight: |
2,43 kg
|
| Dimensions
( Length × Width × Height ):
|
14,00 × 28,00 × 26,00 cm |
