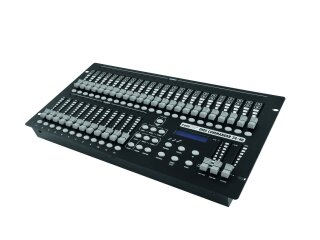

Theater light console for 48 DMX channels, brightness control for each scene
- Good visual control of scenes and chasers through intelligent status LEDs
- Blackout function
- Firmware update and data backup via USB connection
- Programmable 84 scenes/chases and distributed over 7 page/s
- Can transmit up to 48 DMX channels
- Control via DMX; sound to light via microphone; sound to light via RCA (F) mounting version; RDM
- (19") 48.3 cm rack installation 6 U
- For application areas such as: Clubs/dancing school; Trade fair and shop fitting; stage; theater; restaurants, bars and hotels
- Silent operation
Package contents
- 1 x controller, 1 x external mains adapter, 1 x user manual
| Power supply: |
230 V AC, 50 Hz
9V DC 300 mA |
| Power consumption: |
3,00 W |
| IP classification: |
IP20 |
| Power connection: |
Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Programs: |
Programmable 84 scenes/chases and distributed over 7 page/s |
| DMX channels: |
Output 48 |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Control: |
DMX; sound to light via microphone; sound to light via RCA (F) mounting version; RDM |
| Housing color: |
Black |
| Color: |
Black |
| Mounting depth: |
80 mm |
| Housing design: |
(19") 48.3 cm rack installation 6 U |
| Dimensions: |
Width: 48,3 cm
Depth: 24,5 cm
Height: 8,9 cm |
| Weight: |
3,95 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Item information |
Value |
| Shipping weight: |
6,00 kg
|
| Item weight: |
4,60 kg
|
| Dimensions
( Length × Width × Height ):
|
155,00 × 595,00 × 31,00 cm |
