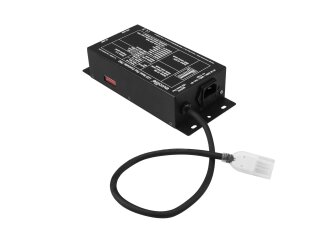

Controller with DMX interface for the RGB LED neon tube (item 50499801)
- Compact controller for the slim LED neon tube (item 50499801) via DMX
- 3 separate control channels for individual color mixing of red, green and blue LEDs
- 4-pin cable for connecting the LED neon tube
- Rugged black metal housing
- Integrated show programs
- Control via stand-alone; DMX; sound to light via microphone
Package contents
- 1 x controller, 1 x power cord, 1 x adapter, 1 x tube, 1 x user manual
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
Max. 1380 W
Max. 460 W per channal |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| DMX channels: |
6 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Control: |
Stand-alone; DMX; sound to light via microphone |
| Housing color: |
Black matte |
| Diameter mounting holes: |
6 x Ø5mm |
| Dimensions: |
Width: 22,5 cm
Depth: 10 cm
Height: 5 cm |
| Weight: |
1,17 kg |
| Power cord |
| Cable construction: |
3 x 1,5 mm² H05VV-F |
| Cable length: |
Approx. 1,2 m |
| Item information |
Value |
| Shipping weight: |
1,80 kg
|
| Item weight: |
1,35 kg
|
| Dimensions
( Length × Width × Height ):
|
10,00 × 26,00 × 17,00 cm |
