For starters

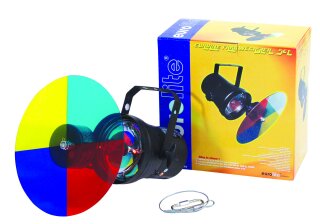

- Color-wheel with motor for T-36
- Spot and motor delivered with installed power cord and safety plug
- Use with alternative illuminants having differing beam angles (flood) is possible
color wheel
- Color wheel with red, green, yellow, blue
illuminant
- Dimmable
- Hot restrike
- Very high color rendering index (CRI)
spotlight
- The device is cooled by passive convection cooling
- Control via plug and play
- With mounting bracket
motor for color wheel
- Control via plug and play
Package contents
- 1 x spotlight, 1 x illuminant, 1 x motor for color wheel, 2 x nut, 1 x color wheel, 1 x safety bond, 1 x chain link, 1 x lamp clamping ring, 1 x user manual
| Weight: |
1,55 kg |
| Spotlight |
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
Max. 30 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Suitable lamp: |
Max. 6,4 V/30 W PAR-36 G-53 STC |
| Power connection: |
Fixed power supply cord with safety plug |
| Cable construction: |
3 x 0,75 mm² H05VV-F |
| Cable length: |
Approx. 0,9 m |
| Base: |
Wires |
| Cooling: |
Passive convection cooling |
| Control: |
Plug and play |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket |
| Output: |
6.4V AC; |
| Dimensions: |
Length: 16 cm
Width: 15,5 cm
Height: 17 cm |
| Weight: |
1 kg |
| Mounting bracket |
| Diameter mounting holes: |
3 x Ø10mm; 1 x Ø8mm |
| Material: |
Metal, 2 mm |
| Illuminant |
| Voltage (lamps): |
6,4 V |
| Nominal wattage: |
30 W |
| Base: |
G-53 STC |
| Lamp type: |
Halogen lamp; clear lamp |
| Lamp specification: |
Dimmable
Hot restrike |
| Beam angle (1/2 peak): |
6° |
| Color of light: |
Warm white WW <3300 K |
| Color rendering index (CRI): |
99 Ra |
| Energy efficiency class (A - G): |
G |
| Motor for color wheel |
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
4 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Fixed power supply cord with safety plug |
| Cable construction: |
3 x 0,75 mm² H05VV-F |
| Cable length: |
Approx. 0,9 m |
| Speed: |
2,5 RPM |
| Control: |
Plug and play |
| Maximum load: |
1 kg |
| Housing color: |
Black |
| Dimensions: |
Length: 10 cm
Height: 7,5 cm |
| Weight: |
0,3 kg |
| Color wheel |
| Color generation: |
Color wheel with red, green, yellow, blue |
| Diameter mounting holes: |
1 x Ø8mm |
| Material: |
Plastic |
| Dimensions: |
Width: 0,2 cm
Diameter: Ø 23 cm |
| Lamp clamping ring |
| Material: |
Metal |
| Color: |
Silver |
| Item information |
Value |
| Shipping weight: |
2,30 kg
|
| Item weight: |
1,80 kg
|
| Dimensions
( Length × Width × Height ):
|
25,00 × 24,00 × 14,00 cm |
