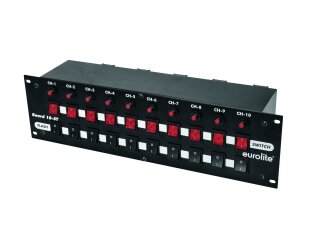

10-fold switching panel, (10 x flash buttons), for separate switching of 10 safety sockets
- Fully cabled housing with 10 safety-sockets
- 10 switches with flash-buttons
- 10 manually resetable fuses with 6.3 A
- Control via on/off switch on device
Package contents
- 1 x device, 1 x user manual
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
3680 W |
| Protection class: |
Protection class I |
| Output power: |
Max. 1150 W per channal |
| Output current: |
Max. 5 A per channal |
| Power connection: |
Fixed power supply cord with safety plug |
| Power output: |
10 x safety contact (F), hinged lid mounting version fused |
| Power output fuse per channel: |
Circuit breaker, 6,3 A fuse resettable |
| Control: |
On/off switch on device |
| Control channels: |
10 |
| Color: |
Black |
| Dimensions: |
Width: 48,3 cm
Depth: 14 cm
Height: 13,35 cm |
| Weight: |
2,96 kg |
| Item information |
Value |
| Shipping weight: |
4,30 kg
|
| Item weight: |
3,29 kg
|
| Dimensions
( Length × Width × Height ):
|
175,00 × 505,00 × 19,00 cm |
