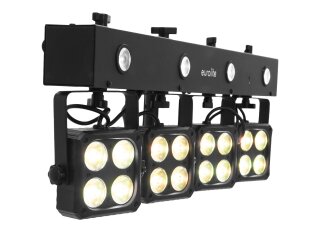

Complete DMX LED lighting system with rechargeable battery pack
- Crossbar with integrated DMX control unit and stand sleeve
- Movable and tiltable spotlights
- Battery operation up to 20h depending on program used
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; Energy-saving mode
- Strobe effect
- Integrated show programs
- Direct color selection for 20 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; sound to light via microphone; DMX; IR remote control; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 9°
- 4 digit 7-segment LED display
- For application areas such as: Band/rehearsal room; mobile djs / entertainer; stage; small rental; mobile use
- Silent operation
- Preprogrammed in EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J; Colorchief
- Mains input and output for power linking up to 8 units
- Application possibility: On stand; suspended
- Cordless, flexible and versatile
- Integrated automatic charging of the battery and status indicator
spotlight
- 4 powerful LEDs 8 W high-power 4in1 QCL RGBW (homogenous color mix)
spots controlled separately
bar
- 4 powerful LEDs 1 W high-power cold white (CW)
LEDs controlled separately
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 1 x bag
Power supply: |
100-240 V AC, 50/60 Hz |
IP classification: |
IP20 |
Power connection: |
Battery/battery pack Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
Power output: |
IEC connector (F) mounting version |
Fuse: |
T 1 A fuse replaceable |
Battery pack type: |
1 x lithium ion 22,2 V, 4400 mAh, 97,68 Wh |
Battery pack: |
Battery operation up to 20h depending on program used Recharging time 5h |
Lamp type: |
LED lamp |
Flash rate: |
0,5 - 20 Hz |
DMX channels: |
3; 4; 8; 21 |
DMX input: |
3-pin XLR (M) mounting version |
DMX output: |
3-pin XLR (F) mounting version |
Cooling: |
Passive convection cooling |
Control: |
Stand-alone; sound to light via microphone; DMX; IR remote control; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
Preprogrammed in: |
EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J; Colorchief |
Projection: |
Flicker-free |
PWM frequency: |
3000 Hz |
Beam angle: |
9° |
Beam angle (1/2 peak): |
9° |
Housing color: |
Black |
Display type: |
4 digit 7-segment LED display |
Dimensions: |
Width: 61 cm Depth: 14,5 cm Height: 27,4 cm |
Weight: |
5,90 kg |
Noise classification: |
Class 0 (no noise at all) |
Remote control |
Battery: |
1 x button cell 3.0 V CR2025 lithium manganese built-in |
Spotlight |
LED type: |
4 x 8 W high-power 4in1 QCL RGBW (homogenous color mix) |
Bar |
LED type: |
4 x 1 W high-power cold white (CW) |
Legal specifications |
Special product: |
Not designed for household room illumination |
Intended use: |
Show effect lighting |
Item information |
Value |
Shipping weight: |
9,40 kg
|
Item weight: |
7,20 kg
|
Dimensions
( Length × Width × Height ):
|
33,00 × 68,00 × 21,00 cm |
