<h4 class="subheadline">4-point truss system</h4><ul class="features", 170,50 €

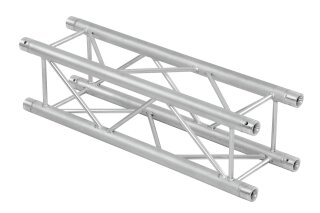

ALUTRUSS QUADLOCK QL-ET34-710 4-way cross beam

Item number: 6030674D

4-point truss system

  • Strong EN-AW 6082 alloy for high loads
  • High-quality aluminum-tubes with 50 mm in diameter
  • Easy installation
  • Low weight
  • Distance center - center: 240 mm
  • For exhibition and shop installers, discotheque and theatre installations
  • 1 x Connection set included
  • Trusspipe: 50 mm
  • Made in Europe

Category: QUADLOCK QL-ET


170,50 €

including 20% VAT. , plus shipping (Standard)

Old price: 184,45 €
Available now!

Shipping time: 4 - 8 workdays






4-point truss system

  • Strong EN-AW 6082 alloy for high loads
  • High-quality aluminum-tubes with 50 mm in diameter
  • Easy installation
  • Low weight
  • Distance center - center: 240 mm
  • For exhibition and shop installers, discotheque and theatre installations
  • 1 x Connection set included
  • Trusspipe: 50 mm
  • Made in Europe


Color: Alu colored
Trusspipe: 50 x 2 mm
Welding material: AlMg 5
Welding technique: TIG-welding
Alloy: AIMgSi1 T6
Strut diameter x thickness: 20 x 2mm
Length: 710 mm
Width: 290 mm
Height: 290 mm
Weight: 5,50 kg
Main chords: 50 x 2 mm
Braces: 20 x 2 mm

Shipping weight: 6,00 Kg
Product weight: 6,00 Kg
